Drilled Wells
Drilled wells penetrate about 100-400 feet into the bedrock. Where you find bedrock at the surface, it is commonly called ledge. To serve as a water supply, a drilled well must intersect bedrock fractures containing ground water.
Drilled Well Construction Features
- The casing is usually metal or plastic pipe, six inches in diameter that extends into the bedrock to prevent shallow ground water from entering the well. By law, the casing has to extend at least 18 feet into the ground, with at least five feet extending into the bedrock. The casing should also extend a foot or two above the ground’s surface. A sealant, such as cement grout or betonies clay, should be poured along the outside of the casing to the top of the well. The well is capped to prevent surface water from entering the well.
- Submersible pumps, located near the bottom of the well, are most commonly used in drilled wells. Wells with a shallow water table may feature a jet pump located inside the home. Pumps require special wiring and electrical service. Well pumps should be installed and serviced by a qualified professional registered with your state.
- Most modern drilled wells incorporate a pitless adapter designed to provide a sanitary seal at the point where the discharge water line leaves the well to enter your home. The device attaches directly to the casing below the frost line and provides a watertight subsurface connection, protecting the well from frost and contamination.

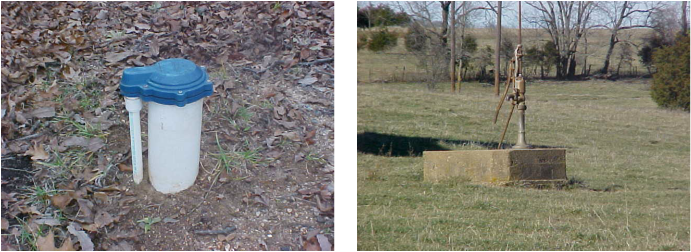

- Older drilled wells may lack some of these sanitary features. The well pipe used was often eight-, 10- or 12- inches in diameter, and covered with a concrete well cap either at or below the ground’s surface. This outmoded type of construction does not provide the same degree of protection from surface contamination. Also, older wells may not have a pitless adapter to provide a seal at the point of discharge from the well.
Wells Information
Properly constructed private water supply systems require little routine maintenance. These simple steps will help protect your system and investment.
- Always use licensed or certified water well drillers and pump installers when a well is constructed, a pump is installed or the system is serviced.
- An annual well maintenance check, including a bacterial test, is recommended. Any source of drinking water should be checked any time there is a change in taste, odor or appearance, or anytime a water supply system is serviced.
- Keep hazardous chemicals, such as paint, fertilizer, pesticides, and motor oil far away from your well.
- Periodically check the well cover or well cap on top of the casing (well) to ensure it is in good repair.
- Always maintain proper separation between your well and buildings, waste systems or chemical storage facilities. Your professional contractor knows the rules.
- Don't allow back-siphonage. When mixing pesticides, fertilizers or other chemicals, don't put the hose inside the tank or container.
- When landscaping, keep the top of your well at least one foot above the ground. Slope the ground away from your well for proper drainage.
- Take care in working or mowing around your well. A damaged casing could jeopardize the sanitary protection of your well. Don't pile snow, leaves, or other materials around your well.
- Keep your well records in a safe place. These include the construction report, as well as annual water well system maintenance and water testing results.
- Be aware of changes in your well, the area around your well, or the water it provides.
- When your well has come to the end of its serviceable life (usually more than 20 years), have your qualified water well contractor properly decommission your well after constructing your new system.
Casing depth and height.
- The wells should be cased below the water levels in the well to afford greater protection from contamination.
- The well casing should extend 1 to 2 feet above the surrounding land to prevent surface water from running down the casing or on top of the cap and into the well.
How can I know the quality of my private drinking water supply?
Consider Heartland Building Inspections for testing the well for pesticides, organic chemicals, and heavy metals before you use it for the first time. Test private water supplies annually for nitrate and coliform bacteria to detect contamination problems early. Test them more frequently if you suspect a problem. Be aware of activities in your watershed that may affect the water quality of your well, especially if you live in an unsewered area.
